Price: $49.99
(as of Sep 07, 2026 21:01:52 UTC – Details)
Product description
Fits standard handlebars of 0.87 inches and wheels of 16-28 inches
These electric vehicle accessories are ideal for enhancing your riding experience. The throttle with grip is made of high-class non-slip material, providing a comfortable grip and superior control to ensure a safe and stable ride. Whether it is an electric motorcycle or an electric scooter, it can be a powerful power supplement to enhance your riding performance.
NOTE: If you are unsure how to install it, please refer to the installation manual.pdf in the [Safety Documents] section of the product details page. If you have any questions, please feel free to consult us.

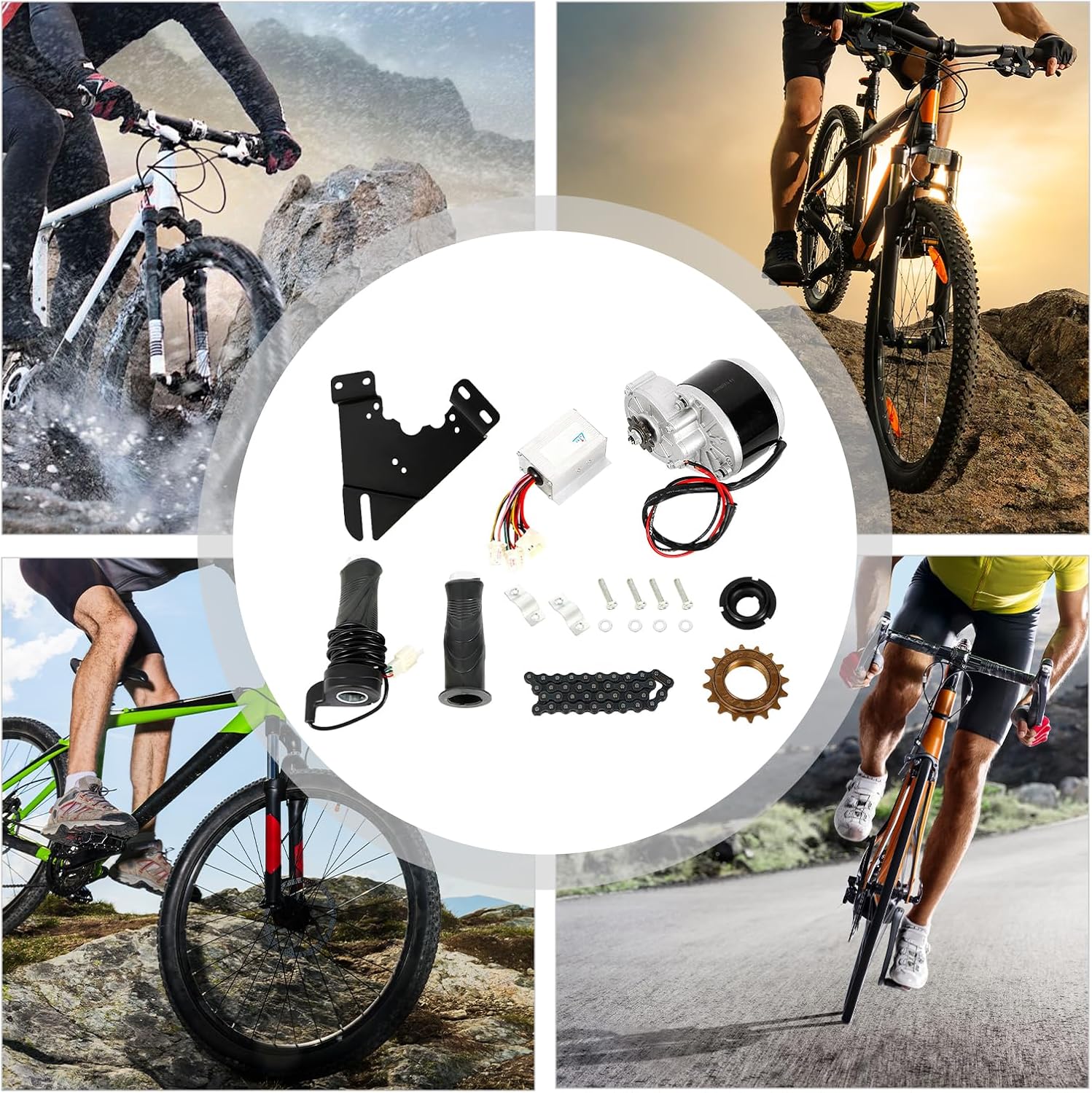

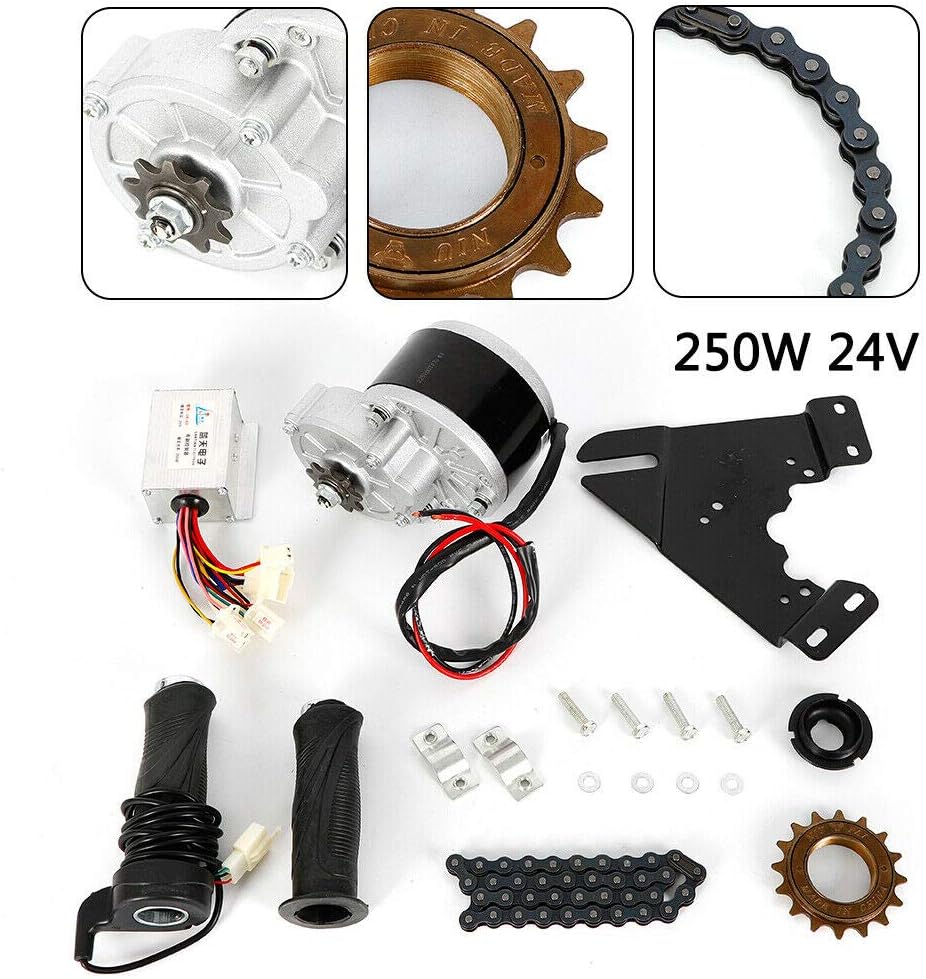

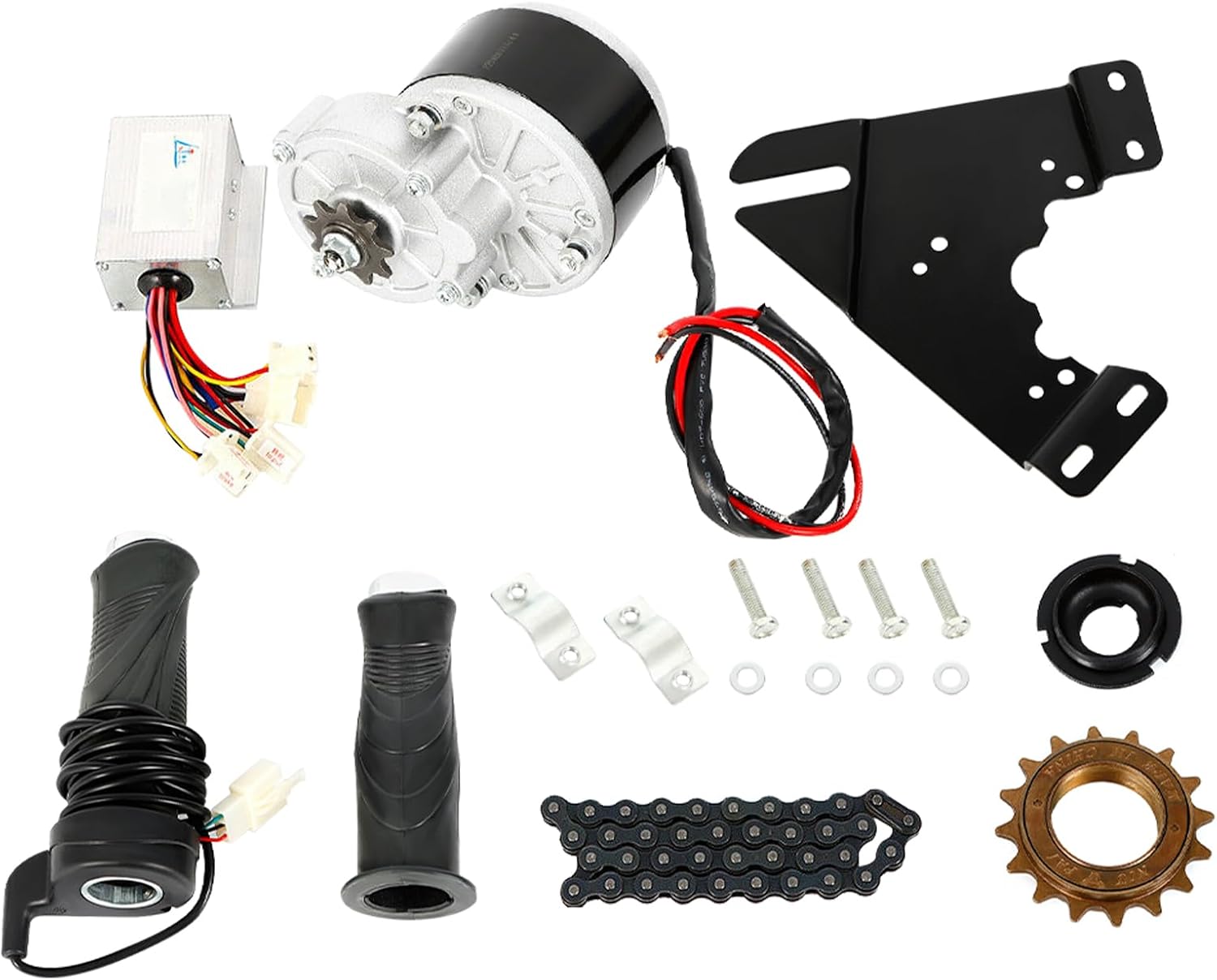

Include：1*24V 250W DC Motor, 1*Chain, 1*Freewheel, 1*Freewheel Adapter, 1*Motor Controller, 1*Mounting Plate, 1*Accelerator Handle, 1*Left Handle Sleeve. All Accessories for Assembly
1*24V 250W DC Motor
The cable length of about 4.92ft reduces usage limitations and allows for easy connection to the controller.
1*Chain
38-section Chain ensures smooth and efficient power transmission while reducing the risk of the chain falling off.
1*Freewheel, 1*Freewheel Adapter
16-Teeth Flywheel serves to adjust the transmission ratio so that the rider can pedal more easily and maintain the desired speed in different road conditions.
1*Motor Controller, 1*Mounting Plate
The powerful brushed controllers help other components run smoothly, making your entire ride easier.
The undervoltage protection(20V) allows you to use it safely and enjoy your ride.
1*Accelerator Handle, 1*Left Handle Sleeve
Handlebars with non-slip texture and rounded edges for comfort and safety, reducing the risk of hand slips and scratches.
All Accessories for Assembly
They keep these components well connected to each other, ensuring a low failure rate for long-term use and reducing your maintenance costs.

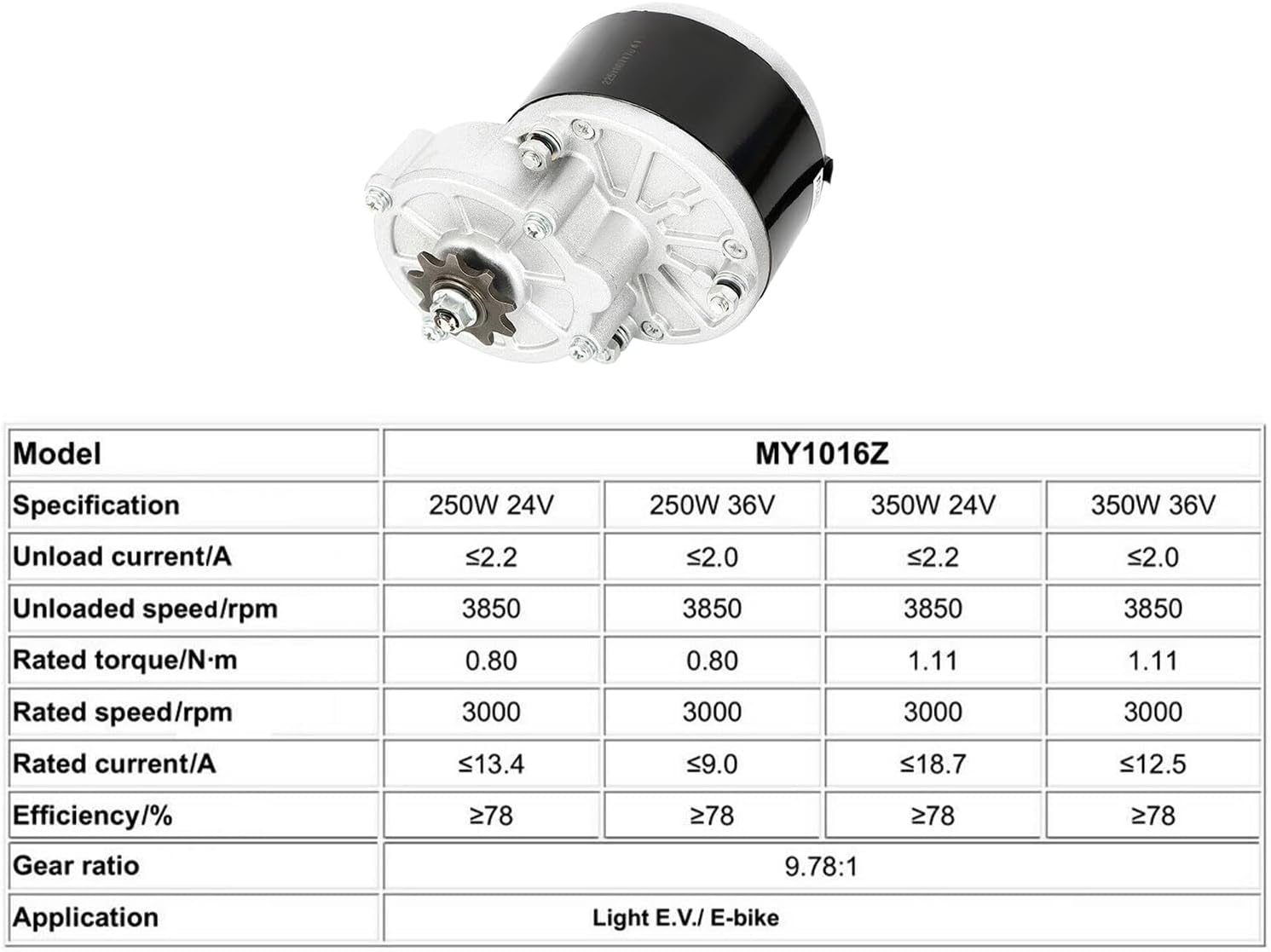

Specifications
Installation Required Yes Riding Method Rotary Throttle Handlebar Motor Type DC Brushed Motor Voltage & Power 24V 250W No-load Current ≤2.2A Rated Current ≤13.4A Motor Speed 330 rpm Unloaded speed 3850 rpm Rated Speed 3000 rpm Rated Torque 0.8 N·m Efficiency ≥78% Gear Ratio: 9.78:1 Noise: About 70 dB Riding Speed About 23km/h/14.3mph (When Mounted on a Bicycle with 26″ Wheels)
Throttle Voltage DC 5V Speed Control 0.8-4.3V Undervoltage Protection Value 20V Throttle Cable Length About 1.5 m/4.92ft Number of Chain Sections 38 Number of Flywheel Teeth 16 Teeth Handle Rotation Angle 0° ~ 70° Working Temperature -20 ~ 50 ℃/-4~122℉ Gross Weight 4kg/8.82lbs Net Weight 3.39kg/7.47lbs Product Size 20*15*10cm/7.87*5.91*3.94in Package Size 26*15*18cm/10.24*5.91*7.09in
Note
1 Please double-check the size before ordering. 2 We recommend installation by a professional bicycle tuner. Buyers should have the experience to install it. 3 You will need two 12V batteries (not included), or one 24V battery. When connected together, they have a recommended capacity of more than 12AH and a continuous discharge current of more than 20A. 4 We do not provide a battery box. However, you can mount it on the rear shelf above the rear wheels or even build a battery box (some DIY skills are required). 5 Please allow the slight color difference caused by shooting light and the slight manual measurement error, and make sure you do not mind before ordering.
INSTALLATION & USER GUIDE
STEP 1: Installing the Freewheel
1. First, flip the bike over and remove the rear wheel. Depending on the situation, shift the axle 0.5 cm toward the freewheel or replace it with an extended axle.
2. Remove the threaded ring and screw it into the bike’s original freewheel . Then tighten the reduction freewheelonto the threaded ring to connect them together (note: both freewheels must be threaded in the same direction). An extra iron ring is included in the kit, but it is generally not needed — use it based on your specific conversion.
3. Install the 2 chains (one is the bike’s original chain, the other is the motor chain) and mount the wheel back onto the frame.
4. Adjust the pedal sprocket. Remove the bike’s fender, disassemble the pedal axle, push the entire pedal assembly all the way to the right, then reinstall and tighten. (This step can be skipped.)
5. Secure everything in place. (After tightening, there should be about 2 mm of clearance between the freewheel and the bike’s rear triangle — do not let the freewheel touch the frame.)
STEP 2: Installing the Motor
1. Remove the motor and motor bracket, and mount the motor onto the bracket (do not tighten too much—leave room for adjustment).
2. After putting on the chain, push the straight plate of the motor bracket against the bike’s rear triangle, sliding it up and to the right until the chain is tight. Lightly secure it using the clamp ring and screws. Note: The clamp ring has pre-drilled threads for convenience, but when tightening, always add a nut and a spring washer for extra security.
3. Carefully adjust the motor position so that the motor sprocket and the reduction freewheel are on the same plane. The motor plate has oversized screw holes to fit different bike models — with careful adjustment, proper alignment can usually be achieved.
4. Tighten the motor bracket and motor securely.
STEP 3: Testing & Adjustment
1. Turn on the ignition switch. Lift the rear wheel off the ground so the bike is vertical and stable. Slowly twist the throttle and check that the motor and drive system run smoothly (some noise is normal due to free spinning—ignore it). Check that the brakes engage properly.
2. If the chain falls off, it means the motor was not installed correctly — the sprocket alignment is off or the chain is too loose. Turn off the ignition switch, then carefully inspect and adjust as needed. Test ride to confirm the system works properly.
🚴【Kit Includes】1x 24V 250W DC Motor, 1x Chain, 1x Freewheel, 1x Freewheel Adapter, 1x Motor Controller, 1x Mounting Plate, 1x Accelerator Handle, 1x Left Handle Sleeve, All Accessories for Assembly (If you’re unsure how to install it, please refer to the installation manual on the product details page or consult us.)
🚴【Wide Application】The conversion kit fits standard handlebars of 0.87 inches and wheels of 16-28 inches. It is compatible with most e-bikes, scooters, skateboards and other DIY projects
🚴【Good material】The conversion kit are made of high-grade aluminum, iron, copper materials, through the baking paint process, light weight, abrasion-resistant, impact-resistant, tough enough, not easy to be damaged, to ensure long-term use
🚴【Safety】The cables and connectors are well connected to ensure a low failure rate in long-term use. Powerful brushed controller and under-voltage protection (20v) make your whole riding process safer
🚴【Easy to Install and Clean】The electric bicycle motor kit comes with a mounting plate and bolts for quick installation and use. The simple structure allows you to clean it easily with water and a rag (not included)
🚴【Thoughtful Design】4.92 ft cable can be easily connected to the controller. 16-pot flywheel meets the speed requirements of different road conditions. 38-section chain ensures a smooth ride and reduces the risk of chain falling off
🚴【Effort-saving】With the electric bike conversion kit, you don’t need to step on the pedals effortlessly, you can control the speed flexibly by gently turning the handle, which makes your riding easier, labor-saving and convenient
